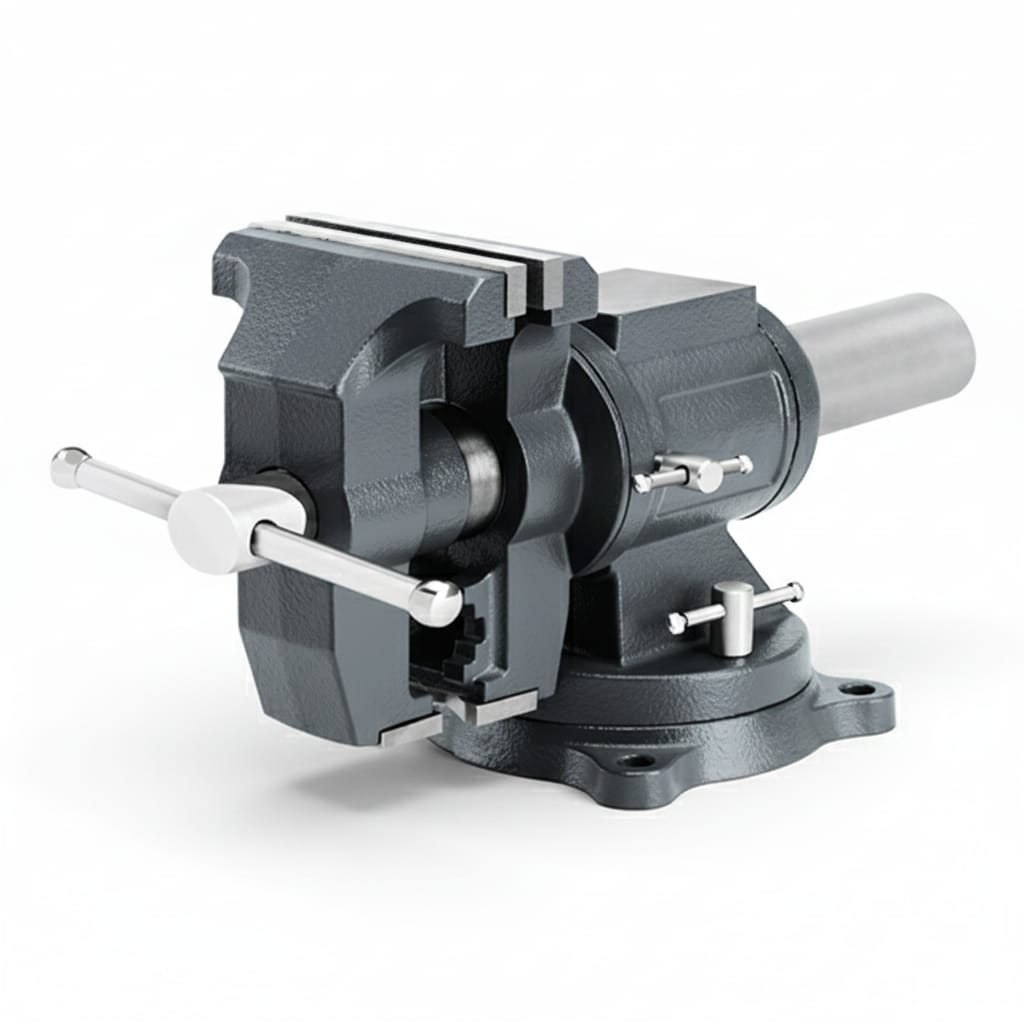

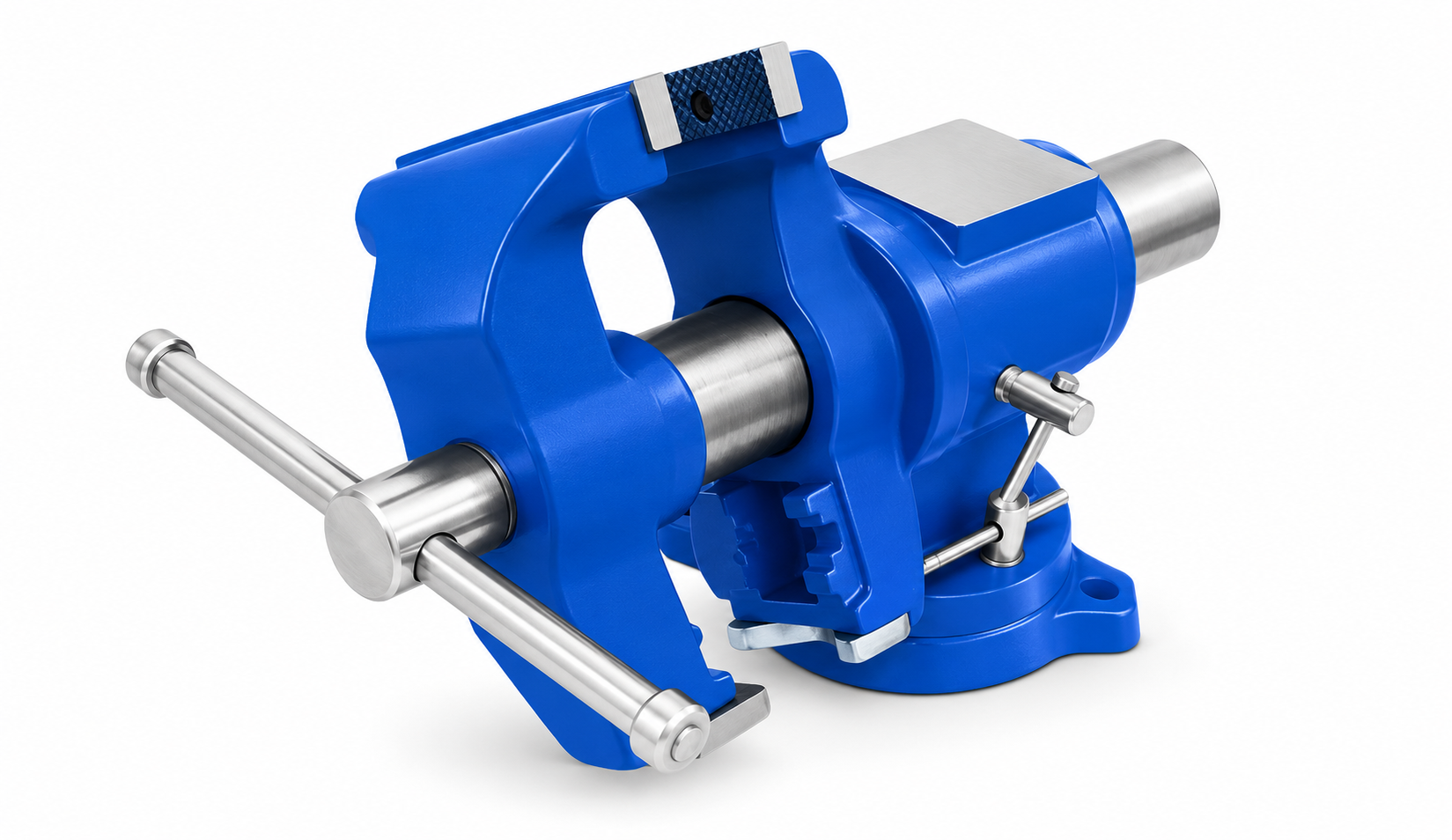

CEWS 104 (C): Multi Purpose Vices (S.G Iron Unbreakable Body)

CEWS 104 (C): Multi Purpose Vices (S.G Iron Unbreakable Body)

(Heavy Duty) (S.G Iron Unbreakable Body)

Recommended for:
Filers, Fitters, Mechanics & Heavy Duty Metal Working Applications.

Key Features

  • Smooth, Precise Body: The heavy-duty S.G Iron body is precision-machined on all moving parts to ensure smooth, trouble-free operation.
  • Rotating Head: The head spins fully and locks at any angle, making it easy to clamp awkward materials.
  • Quick 90-Degree Adjustments: Features built-in clicks at 90 degrees left and right for fast, accurate setups.
  • Built-in Pipe Grip: A specialized V-jaw securely holds round pipes and tubes vertically.
  • Non-Slip Carbon Steel Jaws: The hardened, textured jaws grip materials firmly without slipping.
  • Powerful, Smooth Screw: Uses a premium Acme-thread screw for strong clamping power with minimal effort.
  • Replaceable Steel-Cast Nut: An extra-tough internal nut that handles heavy stress and can be replaced if it ever wears out.
  • High-Strength Bolts: Assembled with high-tensile fasteners to keep the entire vice rigid and sturdy under pressure.
  • Swivel Base Option: Available with a rotating base for even more positioning flexibility.



Category Brand:

Product Description

SizeWidthOpeningWeightPacking
4 × 4”100mm100mm10.5 kg4 Pcs
5 × 5”125mm125mm15.5 kg2 Pcs
6 × 6”150mm150mm20.5 kg2 Pcs
