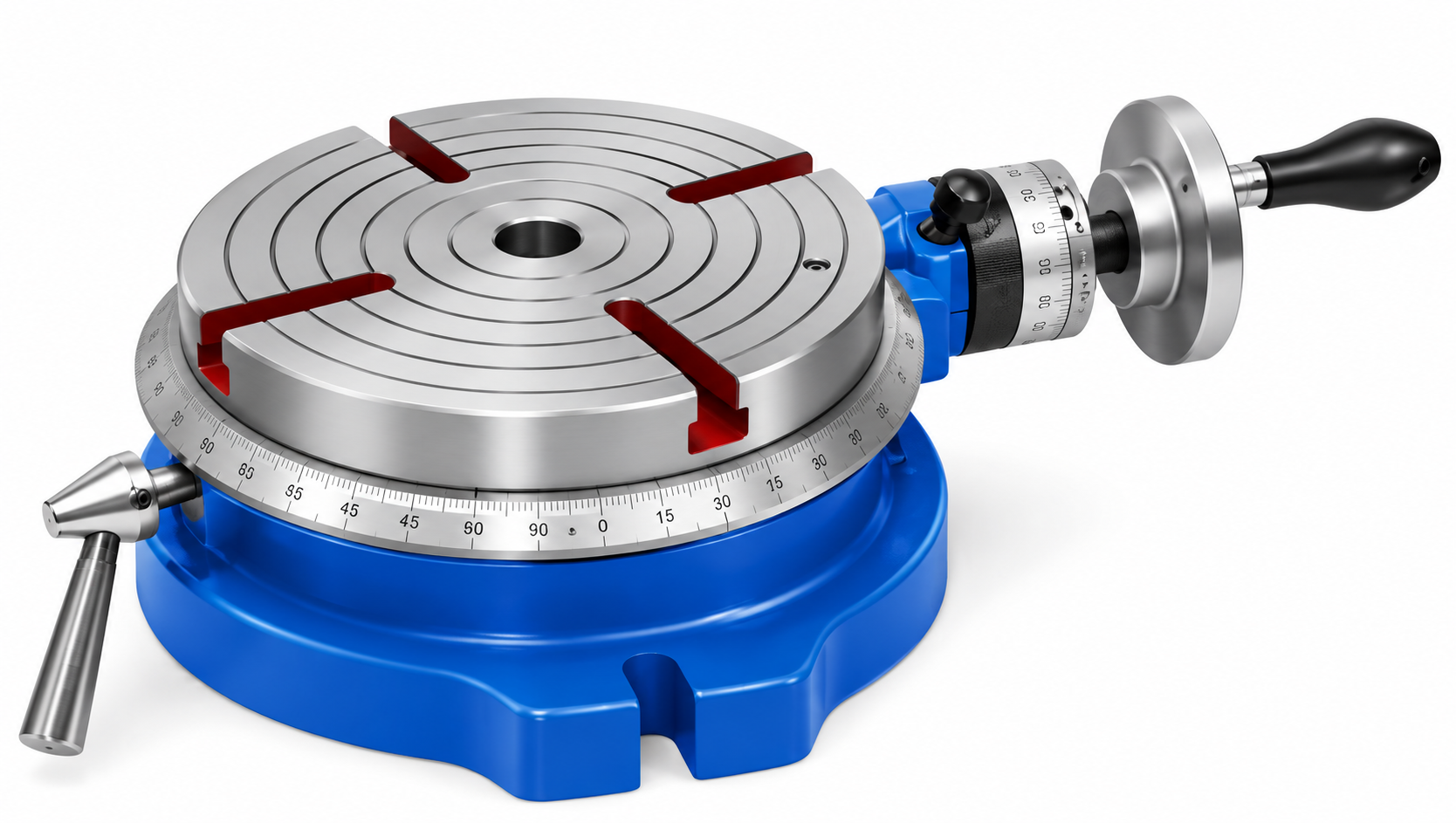

CEWS 162 “STECO BRAND” Rotary Milling Table

Key Features

• Made from strong, shock-resistant cast iron for long service life.
• Strong and rigid body for stable and accurate machining.
• Mounting slots are provided for easy installation on milling machines.
• Can be used in both horizontal and vertical positions.
• Quick and precise worm-drive disengagement for easy setting.
• Positive locking system keeps the table securely in position.
• Adjustable worm shaft for smooth and accurate operation.
• Thrust bearings help provide smooth worm shaft movement.
• Fine zero adjustment allows accurate workpiece setting.
• Can be used as an indexing centre in the vertical position.
• 360° graduated table allows accurate angle setting and indexing.
• Easy-to-read handwheel graduations for precise adjustment.
• Clear graduations and simple controls make the table easy to operate.
• Strong, practical and compact design for workshop and industrial use.
• Suitable for circular cutting, angle setting, boring, spot facing and milling operations.

Accuracy

• Maximum circular graduation error: 2 minutes.
• Table flatness: within 0.005 mm per 100 mm.
• Working surface rotation accuracy: within 0.01 mm.
• Horizontal and vertical surfaces: square within 0.01 mm per 100 mm.
• Centre bore accuracy: within 0.008 mm to the table axis.
• Maximum parallelism error over 360° rotation: 0.001 mm.
